3102-6-FR Flame Retention Nozzles 3/4" NPT

Name: 3102-6-FR Flame Retention Nozzles 3/4" NPT
Brand: Ordan Thermal
SKU: 3102-6-FR
Price: 142.51 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

3102-6-FR Flame Retention Nozzles 3/4" NPT

SKU: 3102-6-FR

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$142.51 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

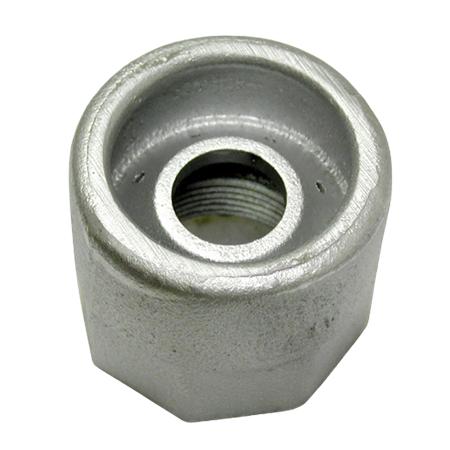

The 3102-6-FR is a cast iron gas nozzle that has a 3/4" NPT pipe size with a 1,000 Btu/h heating capacity. It features up to 25" W.C. maximum pressure and maintains stable flames at all pressures with exceptional turn-down characteristics.

The nozzle is suitable for use with high mixture pressures with different air-gas ratios. The unit can be used without any burner blocks with combustion tunnels that can be created from any of the high-temperature ramming cement.

The 3102-6-FR is quick and easy to install and can be added with pilots and flame failure protection devices.

Maximum Pressure	25" W.C.
Heating Capacity	1,000 Btu/h
Pipe Size	3/4"
Material	Cast Iron

Download Product Information:

Ordan 6-FR Flame Retention Nozzles 3/4" NPT Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Do you expect to have the Pyronics flame retention nozzles back in stock soon? Thanks Eric

Asked on December 26, 2017 by Eric from Colorado Springs, Co

1 Answers

Have an answer? Click Here

These can generally ship within a few days, even when not in stock. The warehouse is closed today, however if you place your order online we can process it tomorrow and can update you with the expected shipping date. We do currently have 1 of the 1" (3102-8-FR) and 2 of the 1-1/4" (3102-10-FR) if you can adapt the pipe size from 3/4" as well. Also we have a qty-2 of the 3/4" atmospheric nozzles (3101-6-AN) which can often be substituted.

Replied on December 26, 2017 by Ron from Industrial Stores
