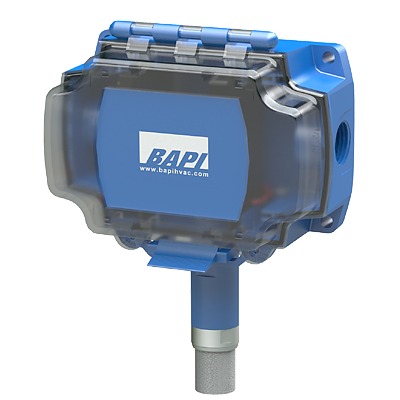

Outside Air Humidity (%RH) Transmitter with optional Temperature Sensor
Outside Air Humidity or Combination Temp/Humidity Units feature closed cell foam to seal the probe insertion hole, mounting tabs for easy installation and etched Teflon leadwires to withstand high humidity and condensation. They are available with 2% or 3% RH accuracies and outputs of 4 to 20mA, 0 to 5V, 0 to 10V or 2 to 10V. These units come with a BAPI-Box 2 enclosure with a hinged cover for easy termination and an IP66/NEMA 4 rating.
| Filter | 80 micron sintered stainless steel filter |
|---|---|
| Enclosure Material | Polycarbonate, UV-resistant |
| Probe Length | 2.4" (6.1cm) Below Enclosure, 1" Diameter |
| Environmental Operation Range (Humidity) | 0% to 100% RH |
| Environmental Operation Range (Temperature) | -40F to 158F (-40C to 70C) |
| Sensor | Factory Corrected @ 17 RH points (10% to 90% RH) |
| Power | 15 to 35 VDC, 6 mA maximum; 15 to 27 VAC, 0.14 VA maximum |
