The Automated Logic ALC/H200-O-BB is an Outside Air Humidity Sensor with humidity capacitive of ±2% and has Interchangeable Output of 0 to 5 V or 4 to 20 mA. The unit features a watertight UV-resistant polycarbonate BAPI-Box enclosure that holds IP66/NEMA 4 rating.
The Outside Air Humidity Sensor with Transmitter is designed to have watertight enclosures withstanding high humidity and condensation. A dependable sensor providing accurate reading and is calibrated at 10 points from 10 to 90% RH. Humidity Transmitter units reading accuracy is ±2%RH
Easy to install and all units include mounting tabs for secure mounting. Also, the probe insertion hole is sealed with closed-cell foam.
| Humidity Sensor | Capacitive 2% RH (10 to 90% RH @ 23C) |
|---|---|
| Enclosure Rating | IP66 NEMA 4 |
| Enclosure Material | UV-Resistant Polycarbonate UL94 V-0 |
| Environmental Operation Range (Temperature) | -40F to 158F (-40C to 70C) |
| Environmental Operation Range (Humidity) | 0% to 100% RH |

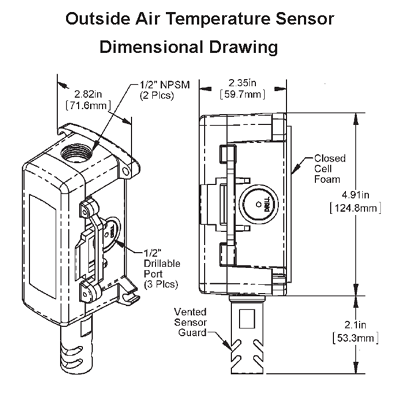

| Enclosure Dimensions | 5 x 4.1 x 2.5” (127 x 104 x 63.5mm) |
| Power & Consumption | 10 to 35 VDC, 22 mA maximum |
