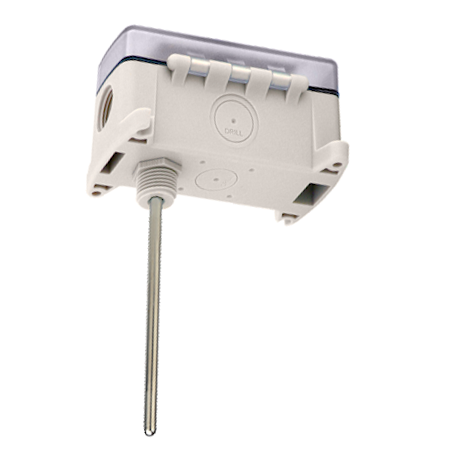

The BAPI BA/10K-2[XP]-I-8-BB2 is an immersion temperature sensor designed for HVAC applications. It features a 10K-2 thermistor encapsulated within an 8" stainless steel probe, ensuring accurate temperature measurement and durability.
This sensor is housed in a BAPI-Box 2 (BB2) enclosure, which is constructed from IP20-rated nylon and plastic materials, providing robust protection in various environments. The sensor operates within a temperature range of 32°F to 158°F (0°C to 70°C) and offers an accuracy of ±0.36°F (0.2°C).
The BA/10K-2[XP]-I-8-BB2 is suitable for direct immersion into pipes, making it ideal for monitoring fluid temperatures in HVAC systems. It comes with 22 AWG etched Teflon lead wires for reliable electrical connections. The sensor is CE and RoHS compliant.
| Enclosure Material | Polycarbonate and Nylon, UL94, V-0 |
|---|---|
| Enclosure Type | BAPI Box 2 |
| Probe Material | Stainless Steel 1/4" diameter |
| Sensing Element | 10K-2 Thermistor |
| Environmental Operation Range (Humidity) | 0 to 100% non-condensing |
| Enclosure Rating | IP10 NEMA 1 |
| Environmental Operation Range (Temperature) | -40 to 100°C |
| Probe Length | 8" |
| Approvals | CE and RoHS compliant |
| Temperature Range | 32°F to 158°F (0°C to 70°C) |
