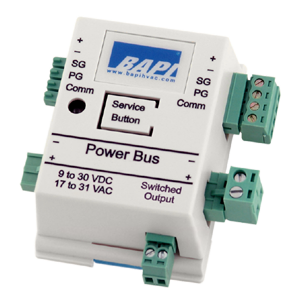

BAPI offers two types of Relay Output Latching Module: Normally Open RYOL and Normally Closed RYOL. Both Relay Modules features an LED light that flashes every 20 seconds indicating data failure transmission from the BAPI Wireless Digital Input Transmitter.

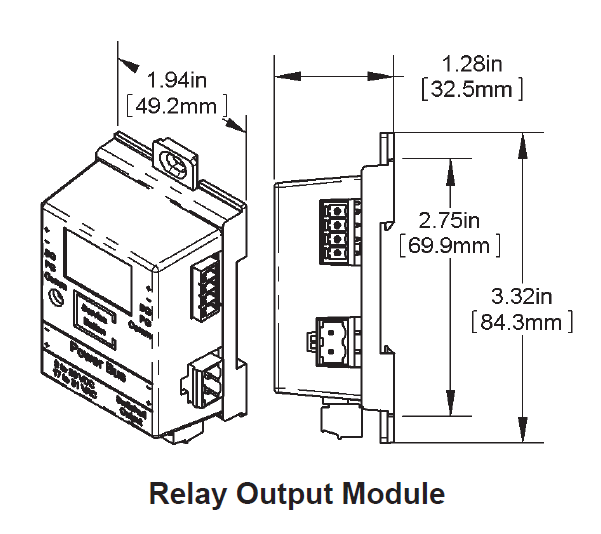

Easy to install and mount on the surface, BA/TRK 2.75" Wide Snaptrack or 35 mm DIN rail. You can attach up to 127 analog output modules in a single BAPI Receiver.
| Bus Cable Distance | 4,000 ft with shielded, twisted pair cable (Belden 9841, Belden 8132 or equivalent) |
|---|---|
| Operating Temperature & Humidity Range | 32°F to 140°F (0°C to 60°C) 5% to 95% RH non-condensing |
| Supply Power | 9 to 30 VDC or 17 to 31 VAC |
| Relay Output | 40V (DC or AC peak), 150 mA max. Off state leakage current 1 uA max. On state resistance 15Ω max. |
| Operation | 5 second momentary actuation |
