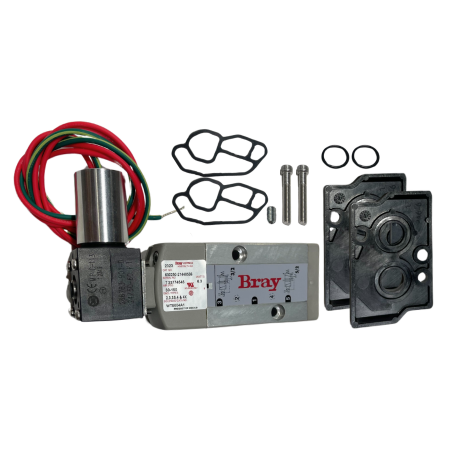

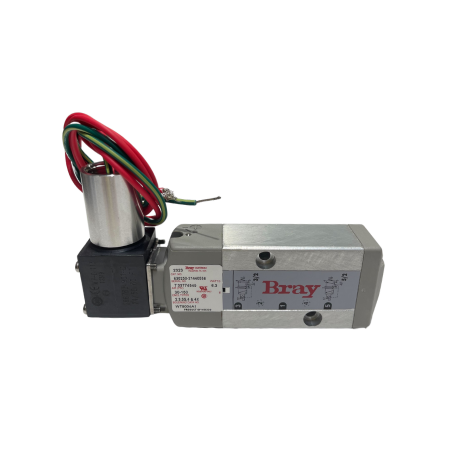

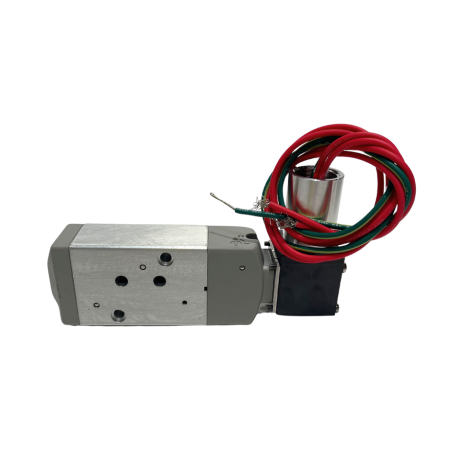

The Bray 630250-21440536 is a solenoid valve kit that includes an airflow plate, an O-ring seal, and screws. This device operates at 24V and can handle 30 to 150 psi air pressure. CE Marked, CSA Certified, and UL Recognized.
Construction:
The solenoid valve controls the flow of air electromagnetically to pneumatic actuators. Features a NEMA 4 enclosure rating to protect from dust, water, and corrosion.
This device is convertible from 3-way (3/2) to 4-way (5/2) and used to either spring return or double-acting actuators where on/off electrical control is required.
The Series 63 solenoid valve is compatible with the Series 92/93 actuator. Direct mounted to the actuator in any position conforming to NAMUR (VDI/VDE 3845).
| Coil Temperature Rating | Insulation Class F 311°F (155°C) |
|---|---|
| Mounting | Any Position (NAMUR VDI/VDE 3845) |
| Enclosure Rating | NEMA 4 |
| Voltage | 24V |
| Wattage | 6.3W |
| Pneumatic Ports | 1/4" NPT |
| Supply Media | Clean Dry Air |
| Duty Cycle | Continuous |
| Operating Temperature Range | -13 to 140°F (-25 to 60°C) |
| Operating Pressure Range | 30 to 150 psi |
