Flynn 408-040 Dual Solenoid Gas Valve 1/2" NPT 120V

Flynn 408-040 Dual Solenoid Gas Valve 1/2" NPT 120V
Images for general purposes only. Actual may be different than depicted.
Flynn 408-040 Dual Solenoid Gas Valve 1/2" NPT 120V

Flynn 408-040 Dual Solenoid Gas Valve 1/2" NPT 120V

SKU: 408-040
Rating:
Quantity Price Stock
4
Usually Ships 1 - 2 Weeks
$313.90     /ea
4
0
$0.00
0
$0.00
0
408-040

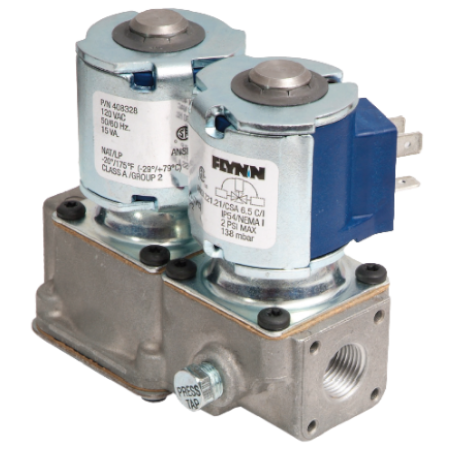

The 408-040 is a dual solenoid gas valve that has a 1/2" NPT inlet/outlet pipe connection size and a 1/8" NPT pressure connection with up to 2 psi maximum pressures.  It has an electrical rating of 120V, 0.13A, and 50/60 Hz frequency.  UL-recognized, EC, and CSA-certified.

The dual solenoid gas valve is suitable for clean and gaseous fuel, natural, propane, butane, LPG, and LNG gases.  The unit can withstand from -20 to 175°F (-29 to 79°C) temperature range while providing excellent performance.  The 408328 Dual Solenoid Gas Valve 3/8" NPT 120VAC, 403805 connector kit, 408850, and 408850 cable accessories are also available.

The 408-040 is easy to install and can be mounted in a horizontal position with the solenoid coils facing upwards or any position not exceeding 90°.  It can also be fitted in a vertical manifold along its axis.

Voltage 120V
Inlet/Outlet Pipe Connection Size 1/2" NPT
Pressure Connection Size 1/8" NPT
Maximum Pressure 2 psi
Amperage 0.13A
Frequency 50/60 Hz
Temperature Range -20 to 175°F (-29 to 79°C)
Approvals UL-recognized, EC, and CSA-certified
Gases Fuel, Natural, Propane, Butane, LPG, and LNG
Power Rating 15 VA per Coil
