Honeywell R8184G4074 Protectorelay Oil Burner Control with 30 second safety timing

Name: Honeywell R8184G4074 Protectorelay Oil Burner Control with 30 second safety timing
Brand: Honeywell
SKU: R8184G4074
Price: 174.58 USD
Availability: SoldOut

Images for general purposes only. Actual may be different than depicted.

Honeywell R8184G4074 Protectorelay Oil Burner Control with 30 second safety timing

SKU: R8184G4074

Brand:

Rating:

Sold Out

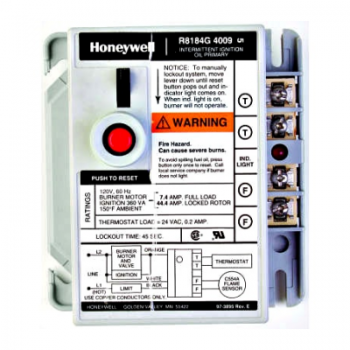

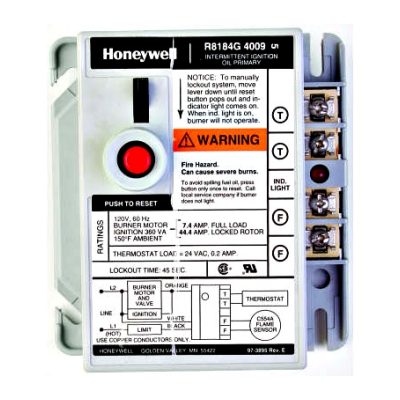

Honeywell R8184G4074 Protectorelay Oil Burner Control

Protectorelay® Oil Burner Control with 15 second safety timing, alarm outputs, and manual safety switch. Provides automatic, nonrecycling control of an intermittent ignition oil burner system.

Features: Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat. Solid state flame sensing circuit. LED on terminal strip indicates system lockout (available on some models). Remote lockout indication (available on some models). Enclosed safety switch with external reset button. Manual trip lever opens safety switch for system maintenance. Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing. C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.

Dimensions	4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
Temperature Range	-40 C to +54 C (-40 F to +130 F)
Timing, Safety Switch	15 sec.
Ignition Type	Intermittent

Download Product Information:

Honeywell R8184G4074 Protectorelay Oil Primary Controls
