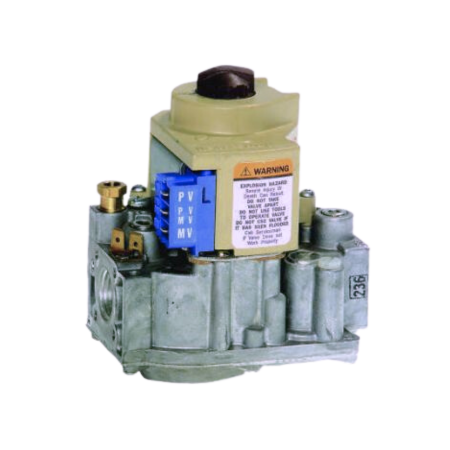

The Honeywell VR8204A2175 is a single-stage gas valve with a standard opening and 1/2” NPT connection. This device has a 3.5" W.C. regulator setting and operates with 24V at 60 Hz power supply.
The gas valve control features a safety shutoff, manual valve, two automatic operators, pressure regulator, pilot adjustment screw, and conduit cover. This component also has a lite-rite (off-pilot-on) lighting sequence.
The VR8204A2175 is used in gas-fired and intermittent pilot appliances. Suitable for use with S860D, S8610, S86F/H, S8600F/H, and S90A/B control modules. Compatible with natural gas and with an ECO connector.
| Field Adjustment Range | 3 to 5" W.C. (0.7 to 1.2 kPa) |
|---|---|
| Standard Factory Regulator Setting | 3.5" W.C. (0.9 kPa) |
| Connection Size | 1/2" NPT |
| Number of Stage | Single-Stage |
| Frequency | 60 Hz |
| Voltage | 24V |
| Opening Characteristics | Standard |
| Temperature Rating | -18 to 79°C (0 to 175°F) |
Download Product Information:
Honeywell VR4204/VR8204 Gas Control Data Sheet
Honeywell VR8104/VR8204/VR8304 Gas Control Installation Guide
