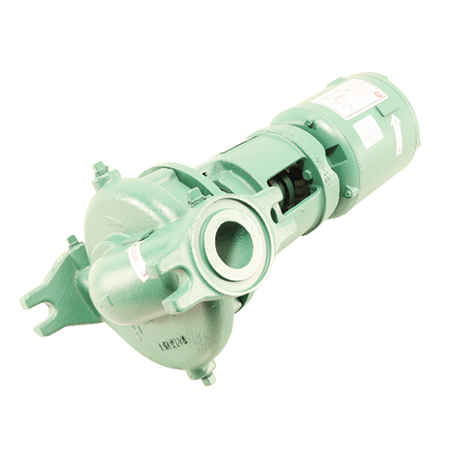

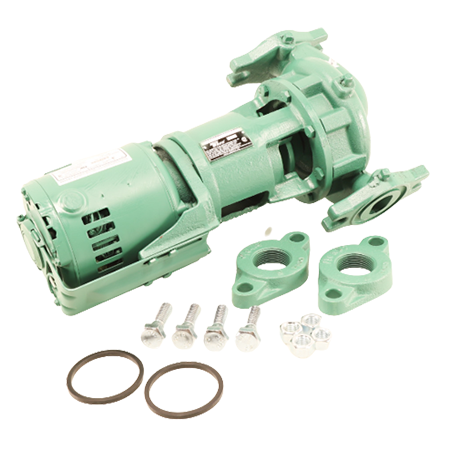

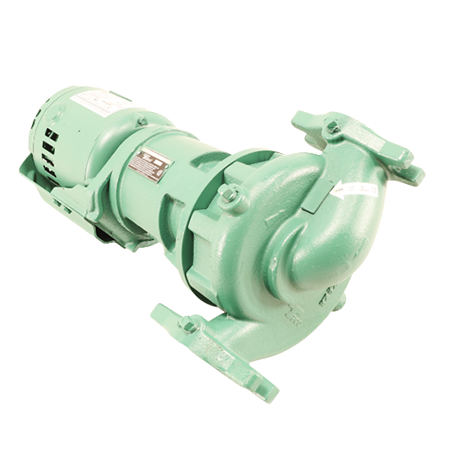

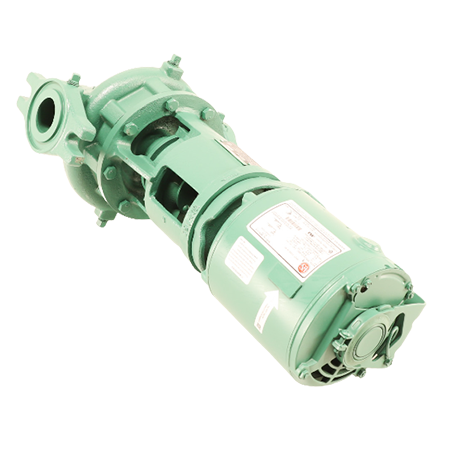

The 1610E3E1-1PH is an inline pump with an impeller and flange set that has a power rating of 1/3 Hp, 115V, and 60 Hz frequency. It has a 1/4" NPT suction connection and a 1/4" NPT discharge connection. The unit features a resilient mounted motor for smooth and silent operation. UL-listed and CSA-certified.
The impeller is suitable for commercial applications such as heating, air conditioning, pressure boosting, cooling water transfer, and water supply. It is constructed with a flexible coupler that absorbs shock, vibration, and misalignment to prevent any motor noise that is caused by vibrations.
The 1610E3E1-1PH is easy to install with a rear pull-out design that allows repair without tampering with the piping and permanently lubricated ball bearings which need no maintenance required.
Checkout the available replacement parts:
| Part No. | Description | Part No. | Description |
| 1610-001RP | Cast Iron Casing | 1600-169RP | Flange Gasket Set |
| 1610-001BRP | Bronze Body | 1600-009RP | Rubber Flange Gasket |
| 1600-024RP | Body Gasket | 121-056RP | Pump Assembly Less Motor |
| 1600-155RP | Bearing Assembly Housing | 1600-215RP | Impeller Bolt |
| 1600-156RP | Bracket Assembly | 1600-151RP | Impeller Washer |
| 1600-050RP | Gasket Kit | 1624-043RP | Coupler |
| 1610-019BRP | Bronze Impeller | 1624-020RP | Neoprene Insert |
| 131-143RP | ODP Motor | 121-154RP | Cast Iron Modernization Kit |
| 1600-031BRP | Bronze Flange Set | 122-002RP | Modernization Kit |
| 1600-031RP | Cast Iron Flange Set | 1600-868CRP | Seal Kit Ceramic 3-piece |
| 1600-205RP | Shaft Sleeve | 1600-160RP | Cartridge Assembly |
| Flange Size | 1 - 1/2" |
|---|---|
| Impeller Material | Cast Stainless Steel (304) |
| Casing Material | Cast Iron |
| Maximum Operating Pressure | 175 PSI |
| Frequency | 60 Hz |
| # of Phases | 1-Phase |
| Rotation Speed | 1750 RPM |
| Pump Bearing Type | Ball Bearing |
| Voltage | 115V |
| Horsepower | 1/3 HP |
