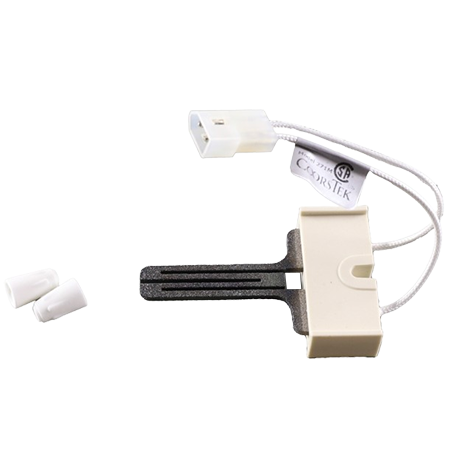

White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor

White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor
Images for general purposes only. Actual may be different than depicted.

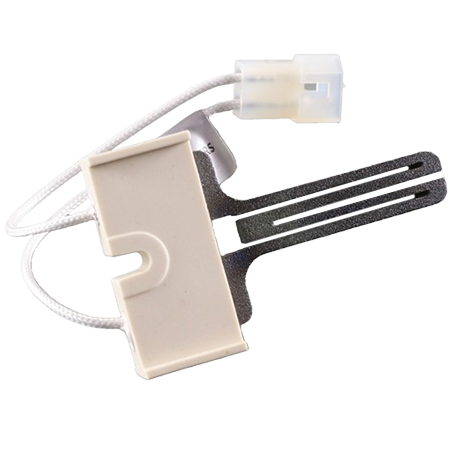

White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor 120V White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor 200°C Rating

White-Rodgers 767A-370 Silicon Carbide Hot Surface Ignitor

SKU: 767A-370
Rating:
Quantity Price Stock
142
Usually Ships 1 - 2 Weeks
$22.80     /ea
142
0
$0.00
0
$0.00
0
767A-370
The 767A-370 is a silicone carbide hot surface ignitor that operates at 120V. 5A, and 60 Hz frequency.  It has a 5.25” lead length and a 200°C insulation temperature rating.   A.G.A. and C.G.A. design certified.

The silicone carbide hot surface ignitor is suitable for 15, 17, and 45-second HSI system applications.  The unit is designed to be used as an excellent ignition source.  It is quick and easy to install with a receptacle that has 0.093” male pins

The 767A-370 replaces the following part numbers:

1380654
1380672
1380680
20015201
201
271
41-403
41-409
511-330-139
511-330-190
511-330-193
600915
90434300
B138196P01
IGN26
IGN30
LH33ZS001A
LH33ZS002
LH33ZS004
Lead Insulation Temperature Rating 200°C
Lead Length 5.25"
Electrical Connection Receptacle with 0.093" Male Pins
Amperage 5A
Frequency 60 Hz
Voltage 120V
Approvals A.G.A. and C.G.A. design certified
Probe Length 2-1/4
Fuel Type LP and Natural Gas
