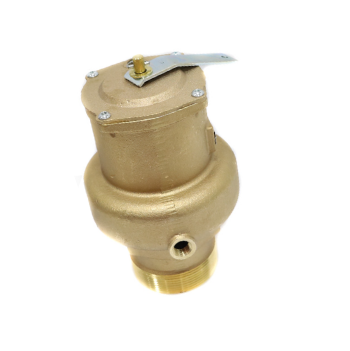

Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female

Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female
Images for general purposes only. Actual may be different than depicted.
Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female

Conbraco 14-207-08 High Volume Safety Relief Valve 3" Male x Female

SKU: 14-207-08
Tariff HS Code: 8481400000
Rating:
Quantity Price Stock
22
Usually Ships 1-2 Weeks
$1,066.96     /ea
22
0
$0.00
0
$0.00
0
14-207-08
Applications:
The 14 Series is an ASME Section IV high capacity steam safety valve for use with
medium and large size commercial and industrial heating boilers.

Features
• One piece body, all bronze construction
• Rust proofed steel spring
• Chrome plated seat, PTFE coated disc
• PTFE coated EPDM O-ring for positive seal
• 3/8" NPT side tapping for drain connection
• Valves are capacity certified by the National Board at 15 psig only, in accordance with
ASME Boiler and Pressure Vessel Code Section IV
• Registered in all Canadian provinces and territories, CRN #0G8547.5C

Options
• Test gag available to prevent the valve from opening during hydrostatic testing of the
boiler. To specify gag option, add “G” to suffix.
Body Material Cast Bronze
Factory Set Pressure 15 psi
Inlet Size 3"
Inlet Type MNPT
Outlet Size 3"
Outlet Type FNPT
Pressure Range 5 to 15 psi
Seat Material Chrome Plated
Steam Capacity 6843 Lb./Hr.
Temp. Range 0 Degrees to 250 Degrees F

Download Product Information:

Instruction Manual
